The parameters of 100ton cement silo:
1: Volume 100 tons
2: Diameter: 3m
3: 1.26-meter plates: 7 sections, 1.5-meter plates: 6 sections
4: The leg height: 5-7 meters, pipe material: Φ219mm x 6
5: Material of the silo body (from bottom to top): usually the cone and the first section are 5m, the middle four sections are 4m, the upper two sections and the upper cover are 2.75m
6: the convey cement pipe: Φ114mm

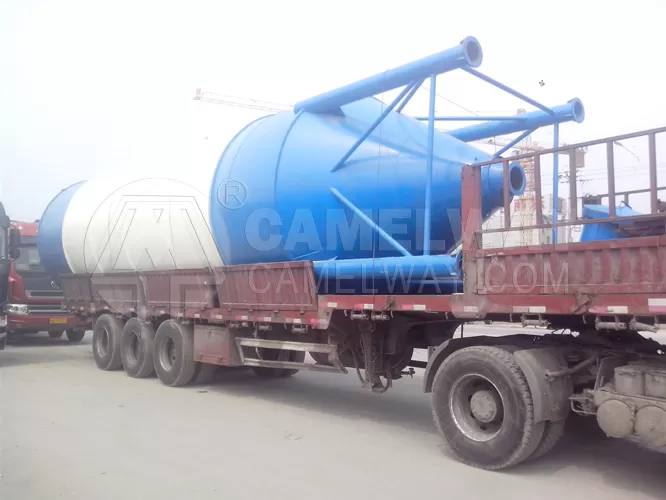

7: Length when transport: about 12.5m without outriggers
8: Own weight: 4.0-4.6 tons
9: Roof dust collector can be equipped with: ordinary filter bag dust removal, electric dust removal, pulse dust removal, water dust removal, etc.

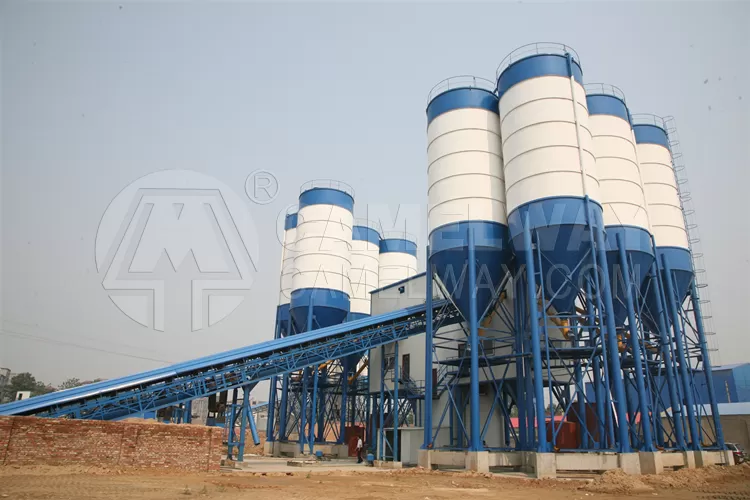

The parameters of 200ton cement silo:
1: Volume 200 tons
2: Diameter: 4.5m
3: 1.5-meter plates: 6 sections
4: The leg height: 7 meters, pipe material: Φ273mm x 8
5: Material of the silo body (from bottom to top): usually the cone and the first section are 6m, the middle four sections are 5m, the upper two sections and the upper cover are 2.75m
6: the convey cement pipe: Φ114mm
7: Own weight: 12-13.5 tons
8: Roof dust collector can be equipped with: ordinary filter bag dust removal, electric dust removal, pulse dust removal, water dust removal, etc.
