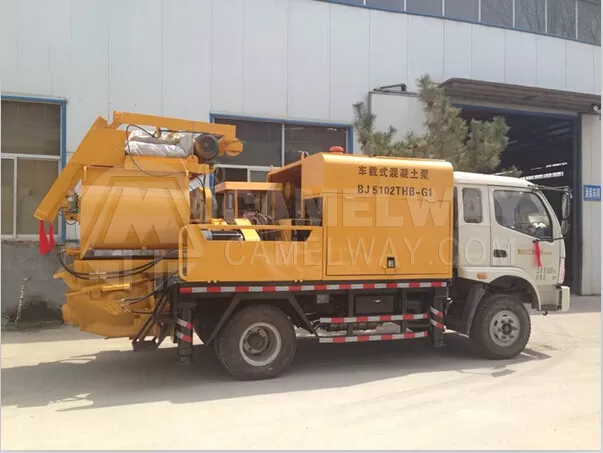

Concrete mixer pump truck, also called truck mounted concrete mixer pump, combines concrete mixer and concrete pump in the single machine which are integrally mounted on the truck for high mobility and flexible operation. Camelway brand concrete mixer pump truck is specially designed and engineered with high quality raw materials with strict processing technology and quantity control system, the main components like oil pump, hydraulic unit, oil pipe lines are famous imported brands. It is the ideal equipment for mixing and conveying concrete to designated location in the simple and cost efficient way especially in small construction sites such as house building, highway, bridge, dam and slope protection project.
Here are some informations of the concrete mixer pump truck:
No | Item | Unit | Specifications |
1 | Model | BJ5102THB-G1 | |
2 | Max. Theoretical Concrete Output | m³/h | 40 |
3 | Max. Concrete outlet Pressure | MPa | 13 |
4 | Distribution Valve | S pipe valve | |
5 | Pumping Cylinder Bore/Stoke | mm | Φ200/1050 |
6 | Max. Theoretical Horizontal Conveying Distance | m | 400 |
7 | Max. Theoretical Vertical Conveying Distance | m | 150 |
8 | Hopper Capacity | L | 400 |
9 | Concrete Conveying Inner Diameter | mm | Φ125 |
